图示是最容易让人理解的表达方式,我们使用图片来认识问题。各种主流编程语言,从某方面来说,都使用了完全不同的编程理念或数据操作方法,给人们的认知留下了巨大的鸿沟。本文展示了一些嵌入在源代码中,使用字母排列拼出来是图案注释。我们很佩服这些注释!

数据结构注释

One of the most common kinds of ASCII art in code is illustrating the shape of a data structure.

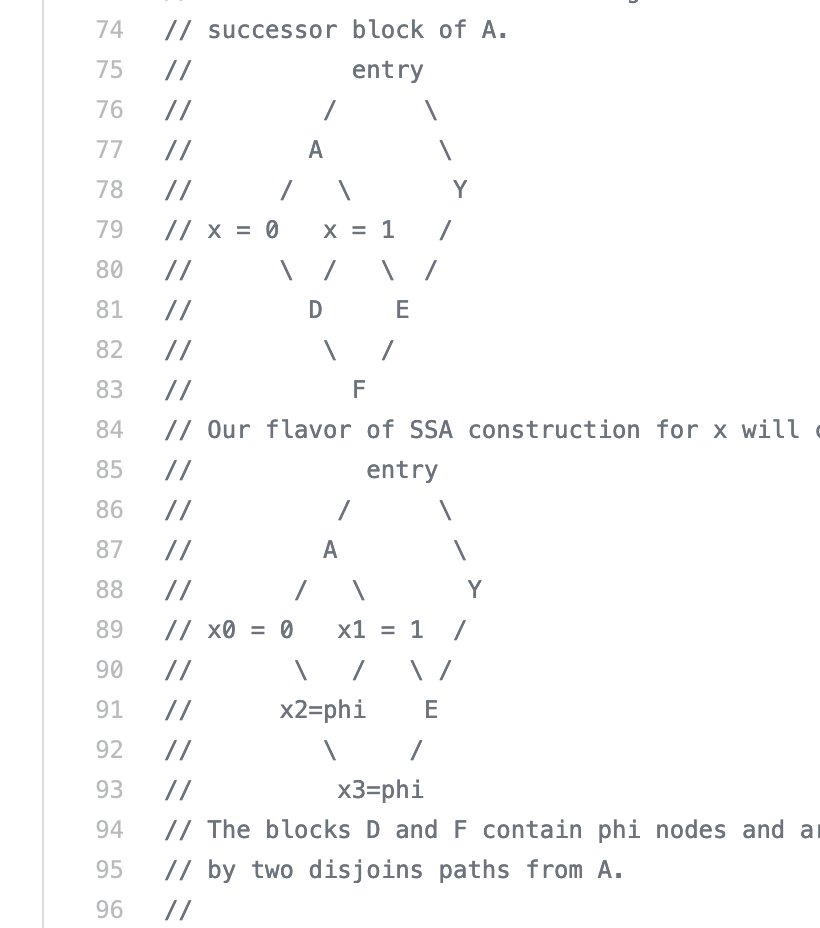

The example I started with comes from LLVM:

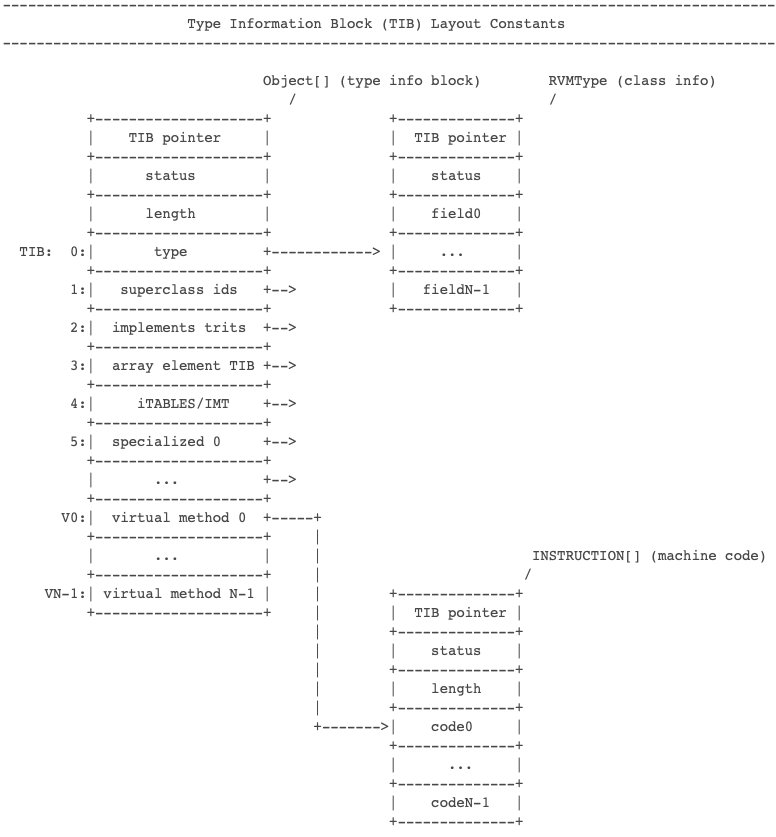

The layout of a data structure in the Jikes RVM:

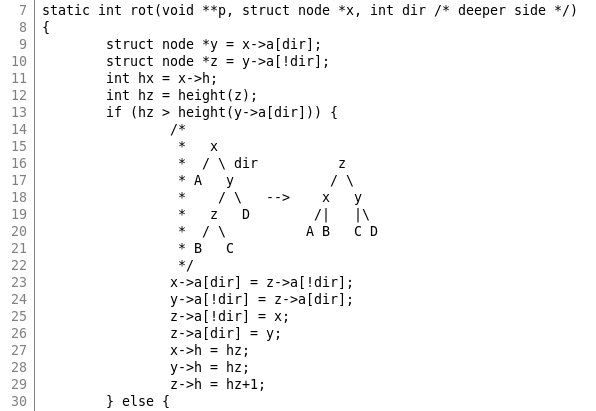

A tree rotate in Musl:

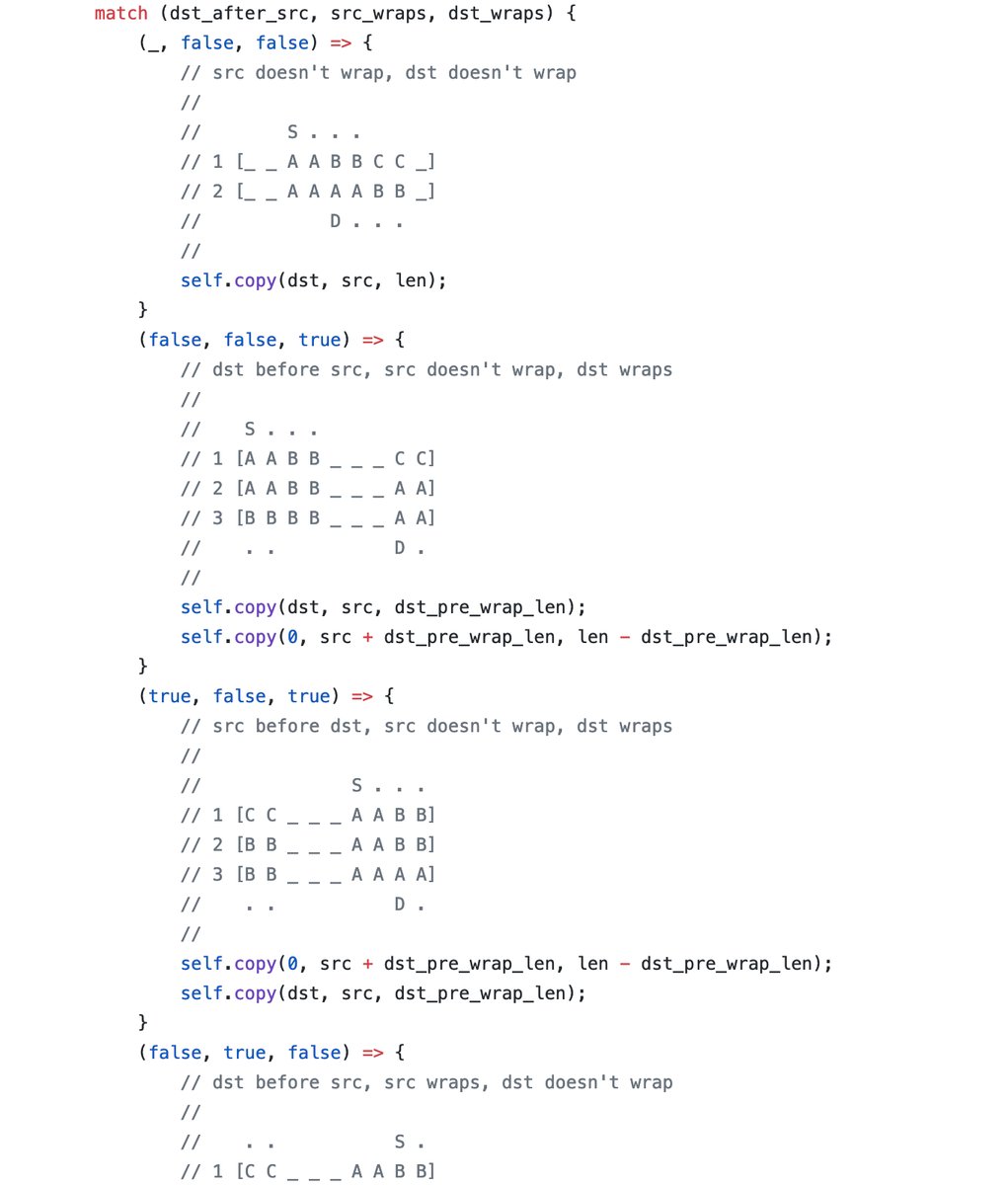

Double-ended queue from the Rust library:

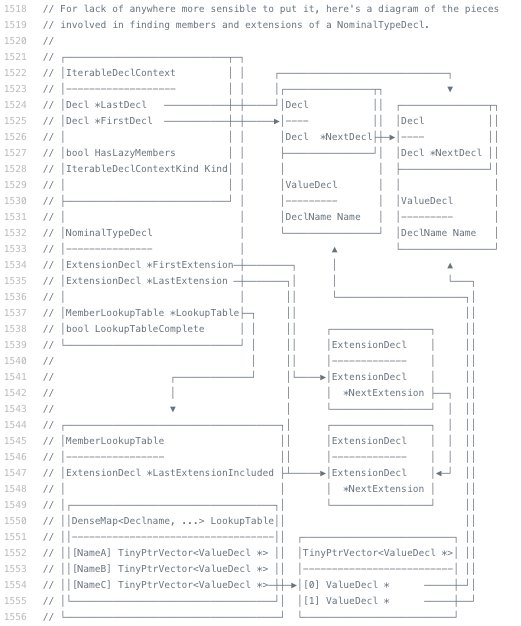

Swift compiler internals:

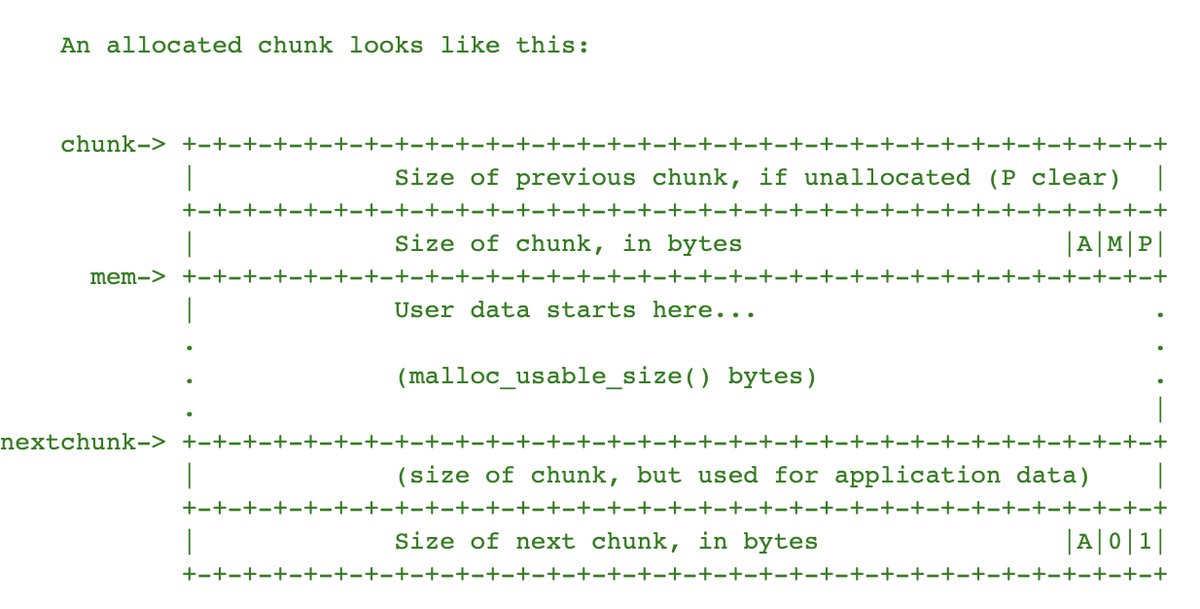

Malloc header layout:

状态机注释

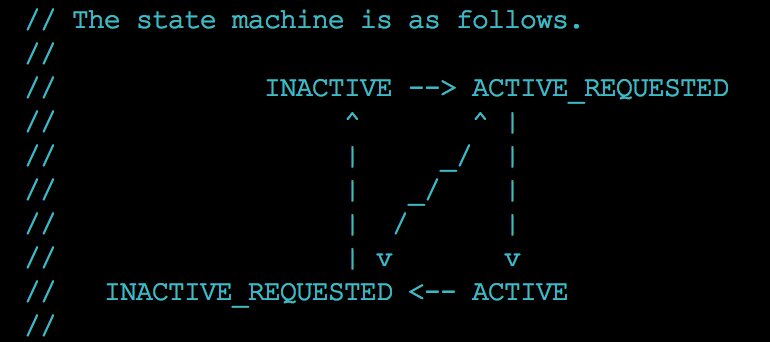

JavaScript profiling:

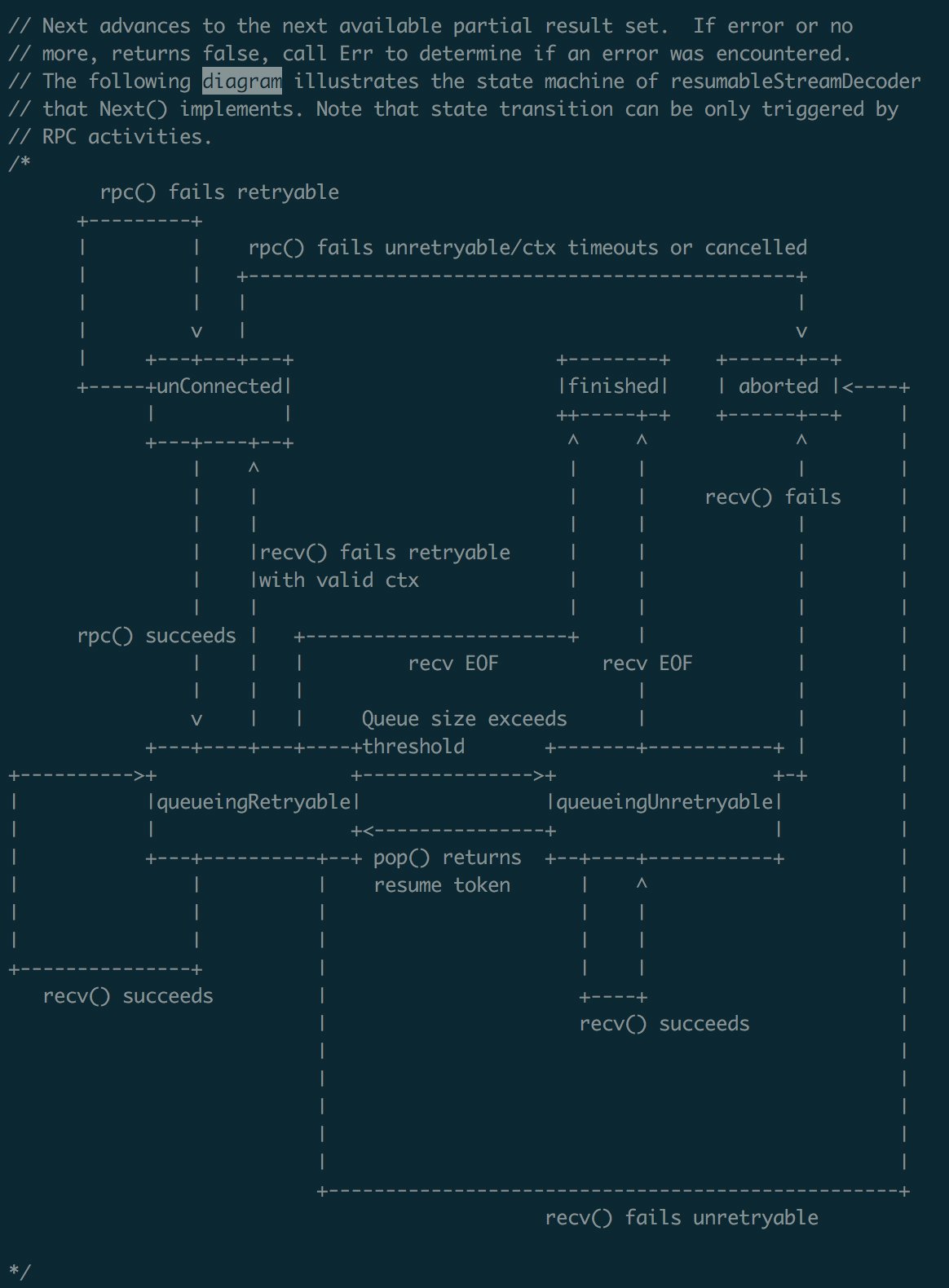

RPCs in Cloud Spanner:

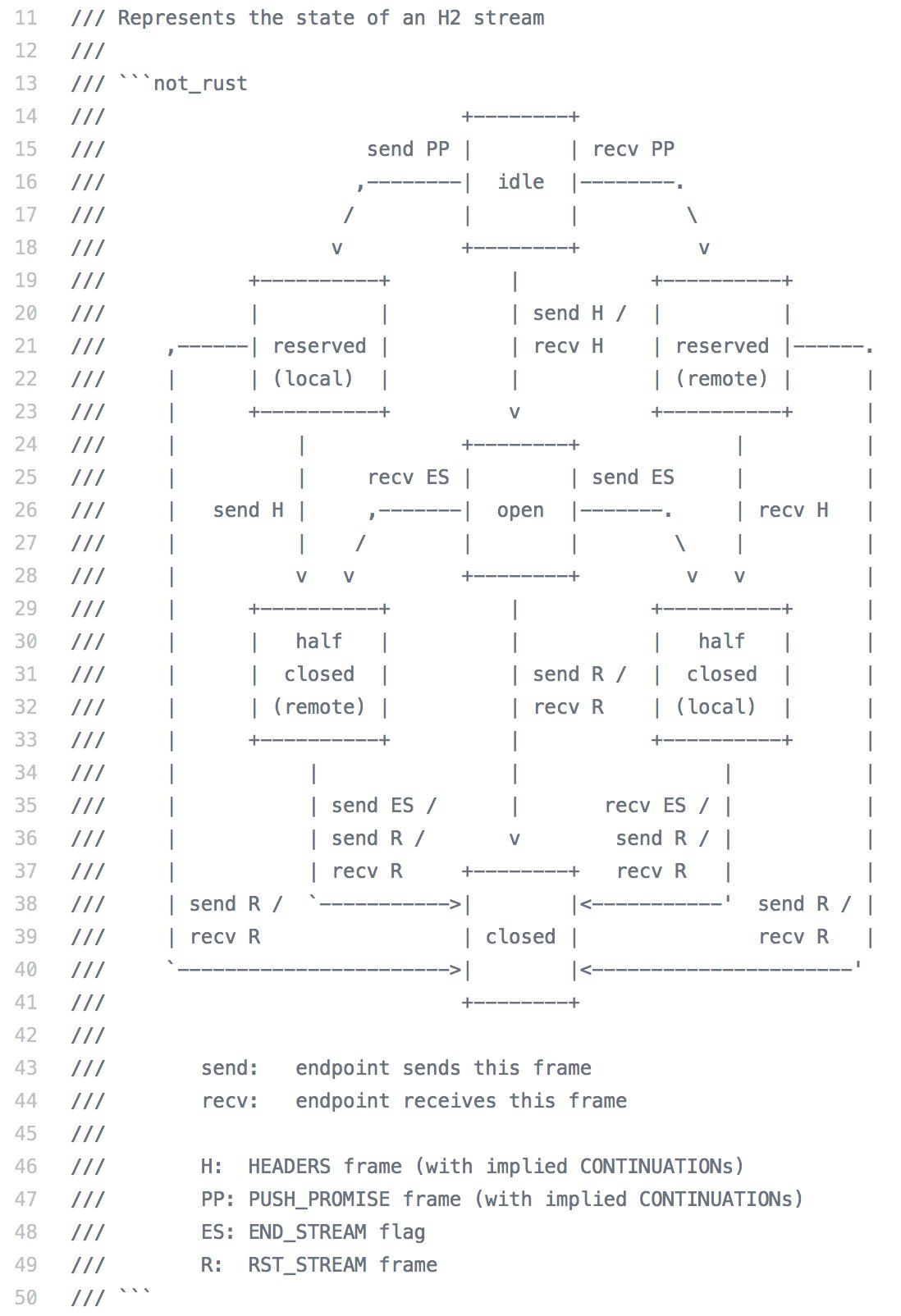

I/O stream states:

逻辑结构注释

Control flow in an NWScript program being decompiled:

ECC internals:

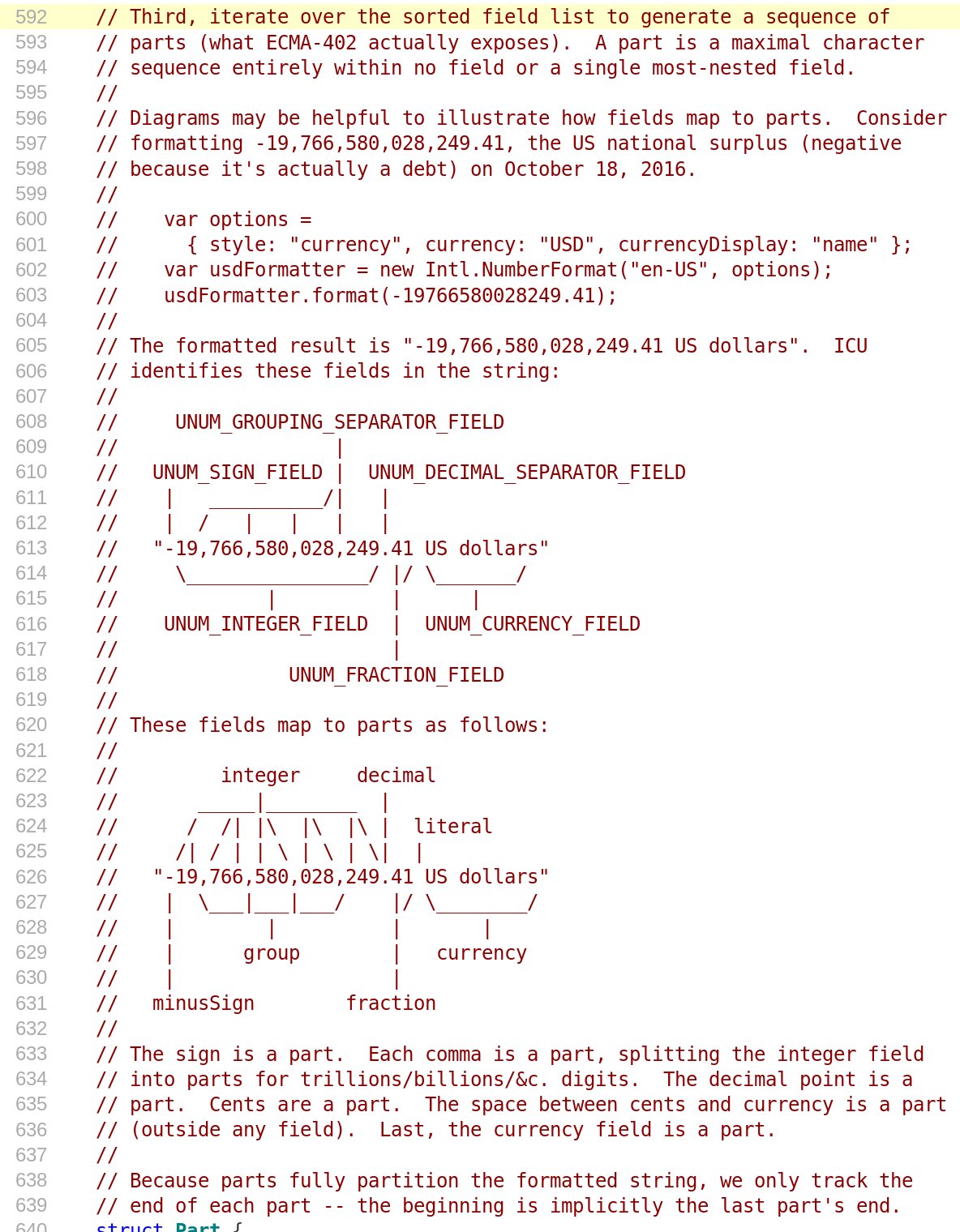

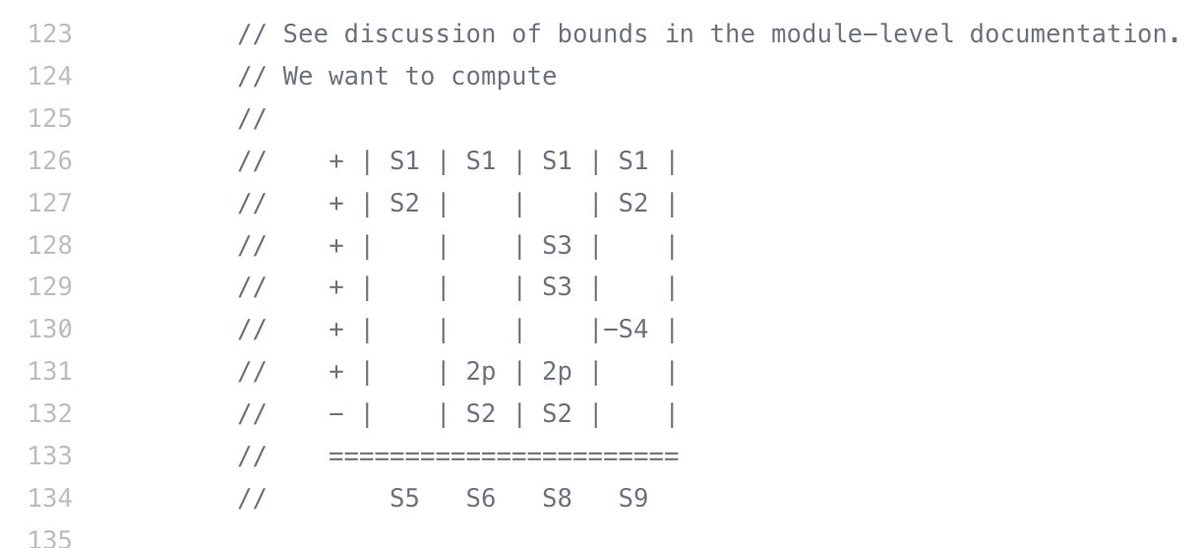

Formatting numbers:

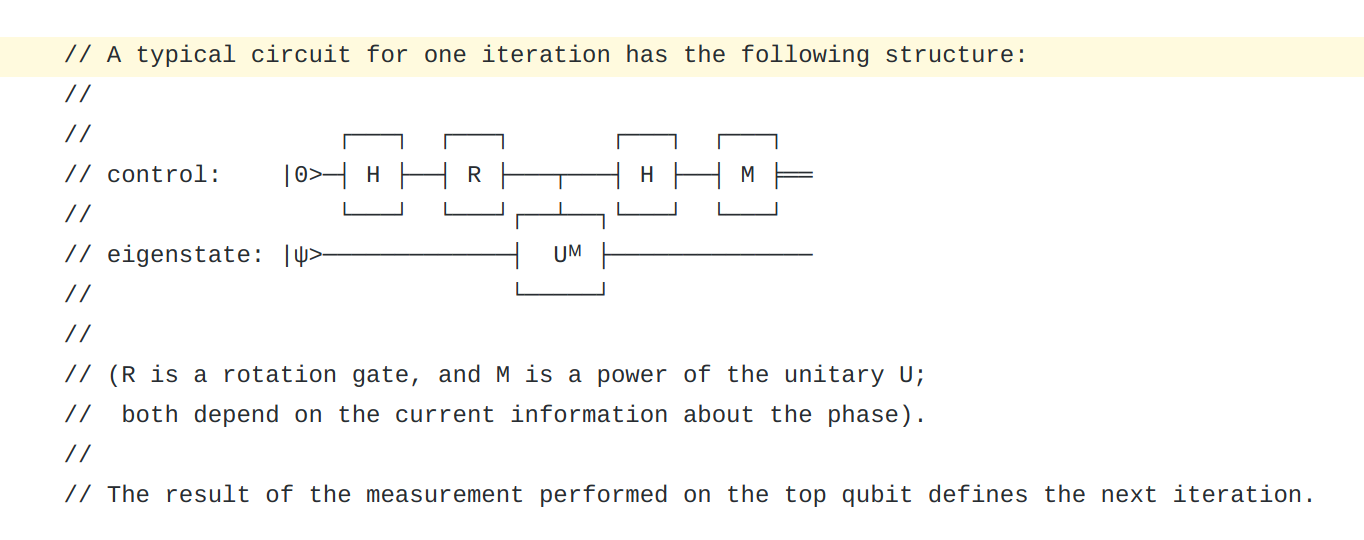

A quantum circuit:

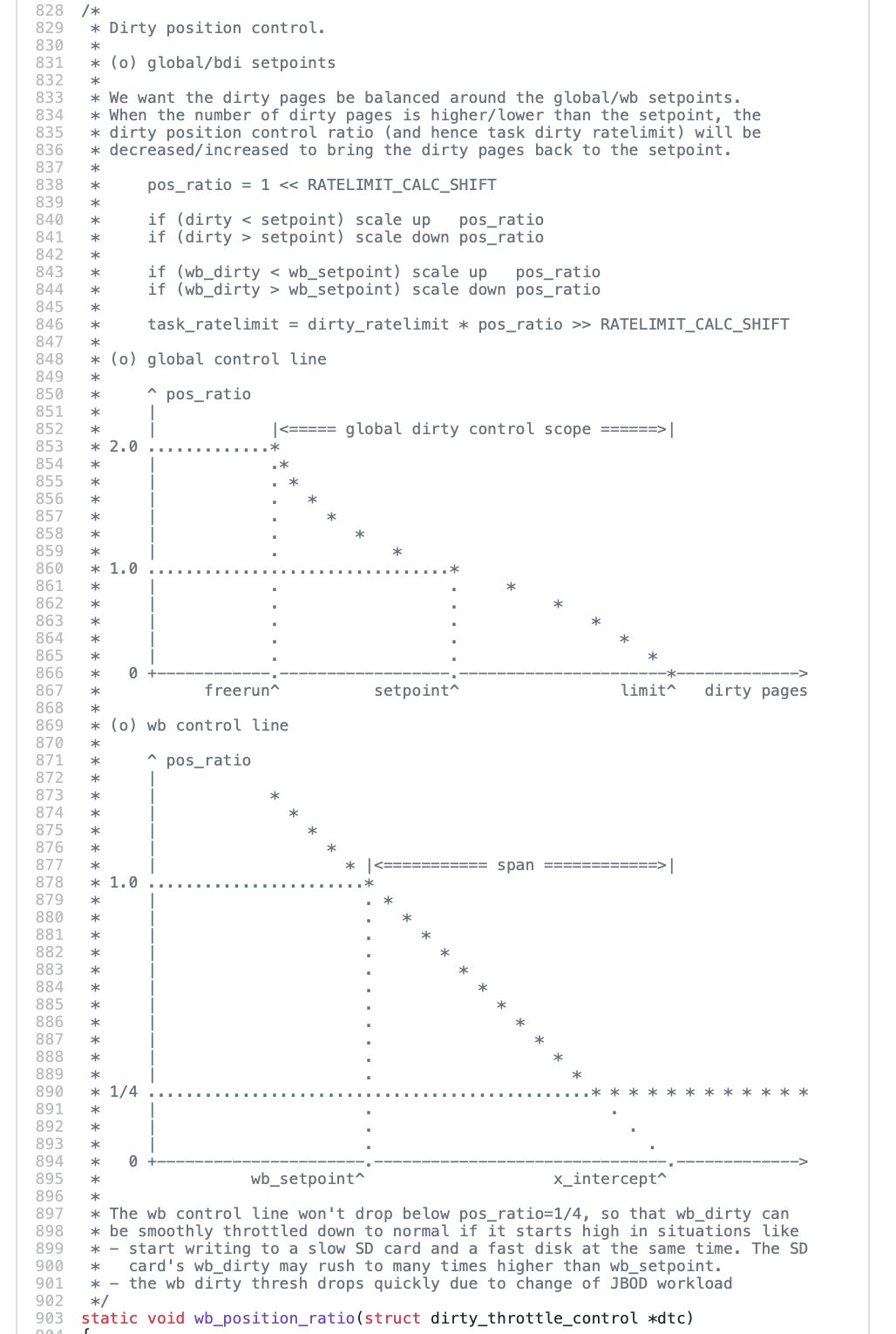

Balancing memory management objectives in an OS kernel:

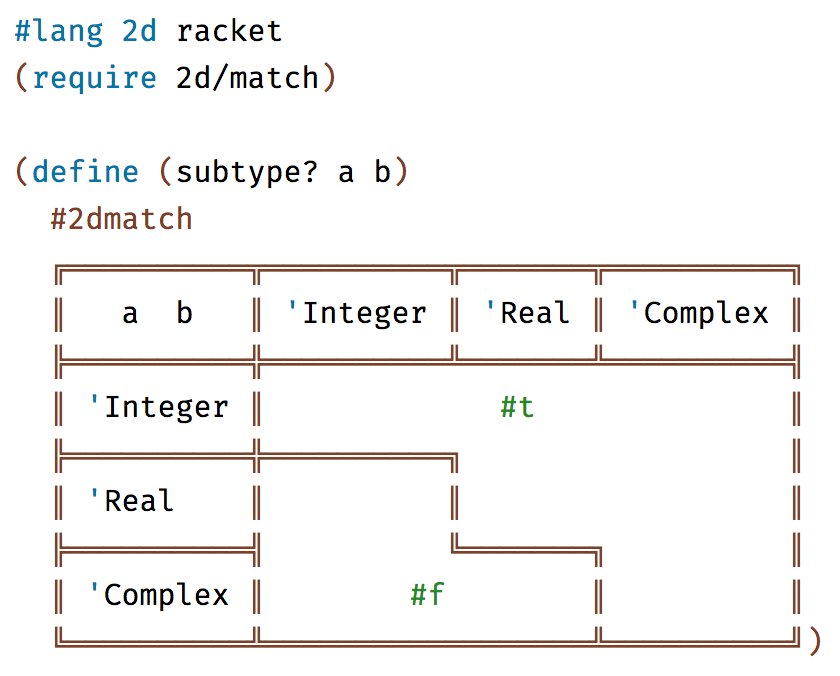

Subtyping relations (this is a very cool special case where the ASCII art is also code):

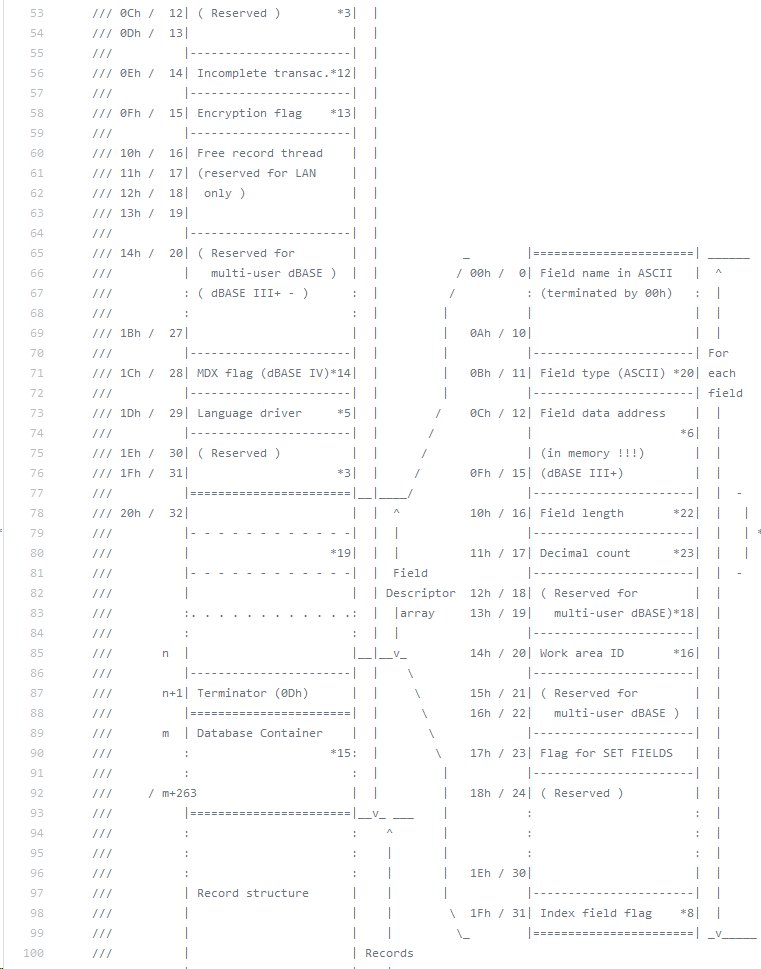

The format of a DBF file:

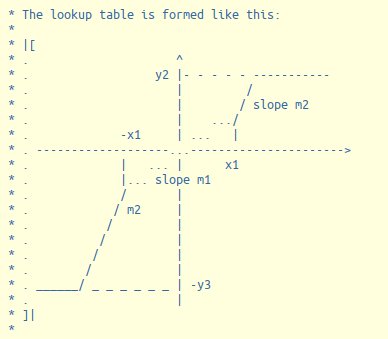

A lookup table for image processing:

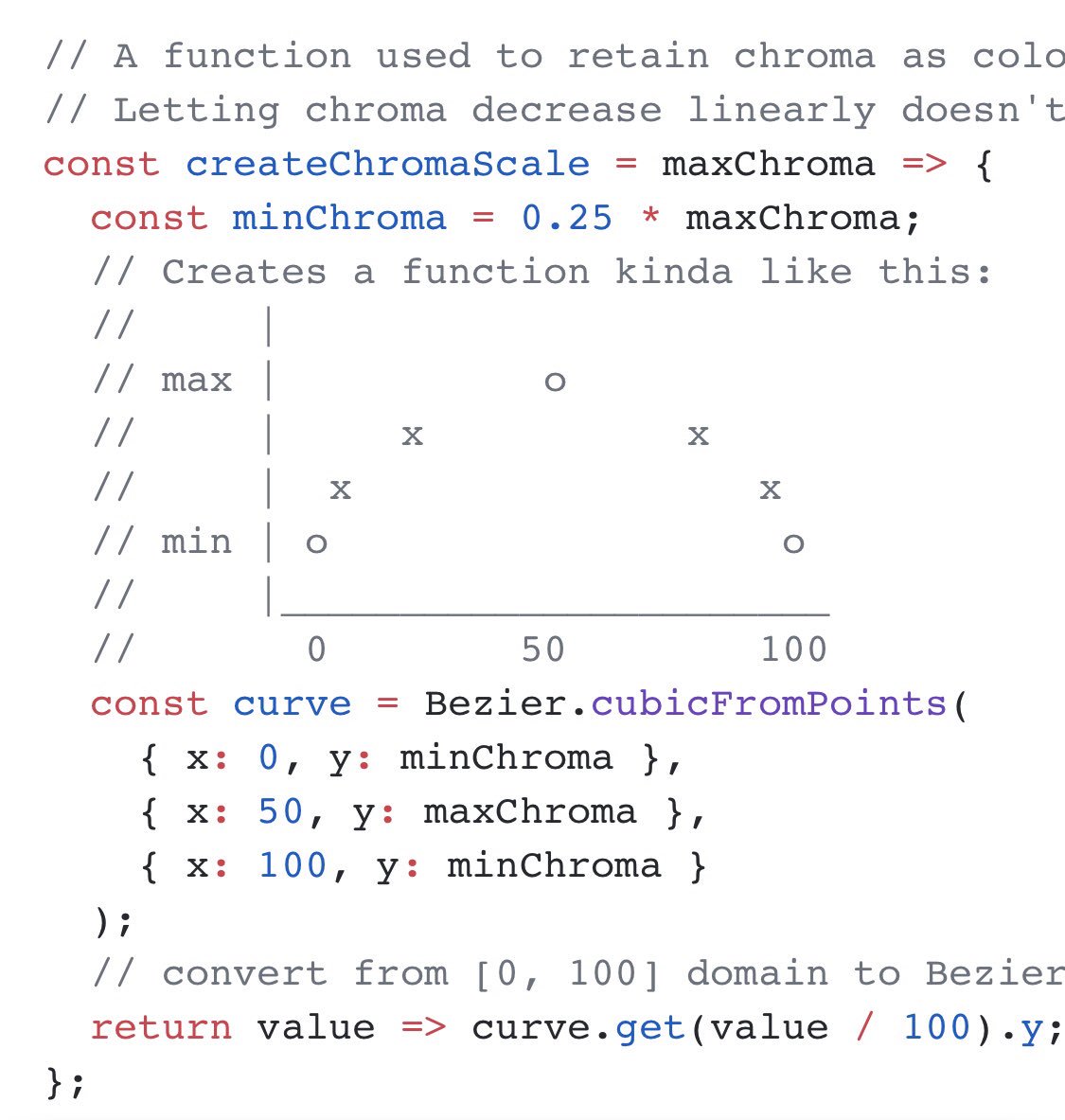

Shape of a color function:

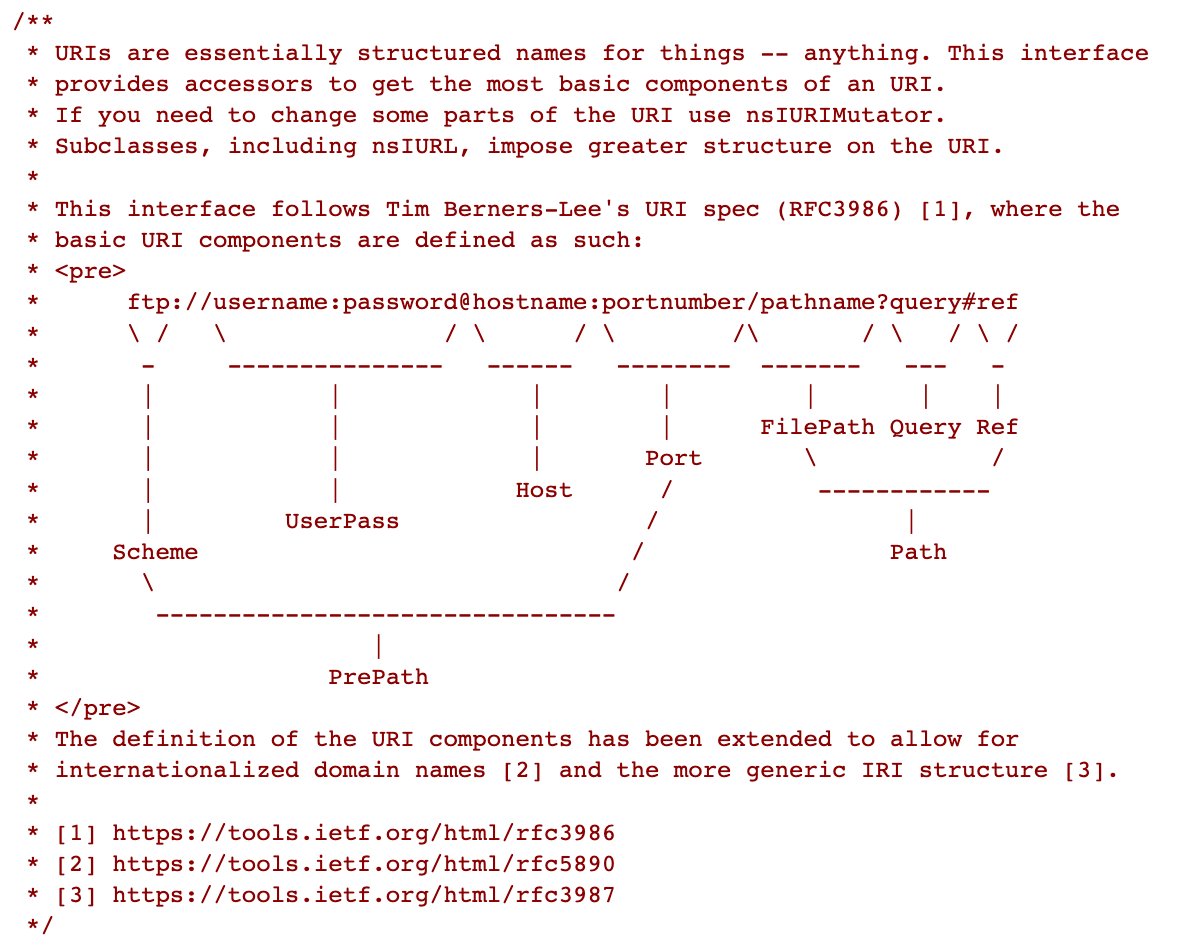

Structure of a URI:

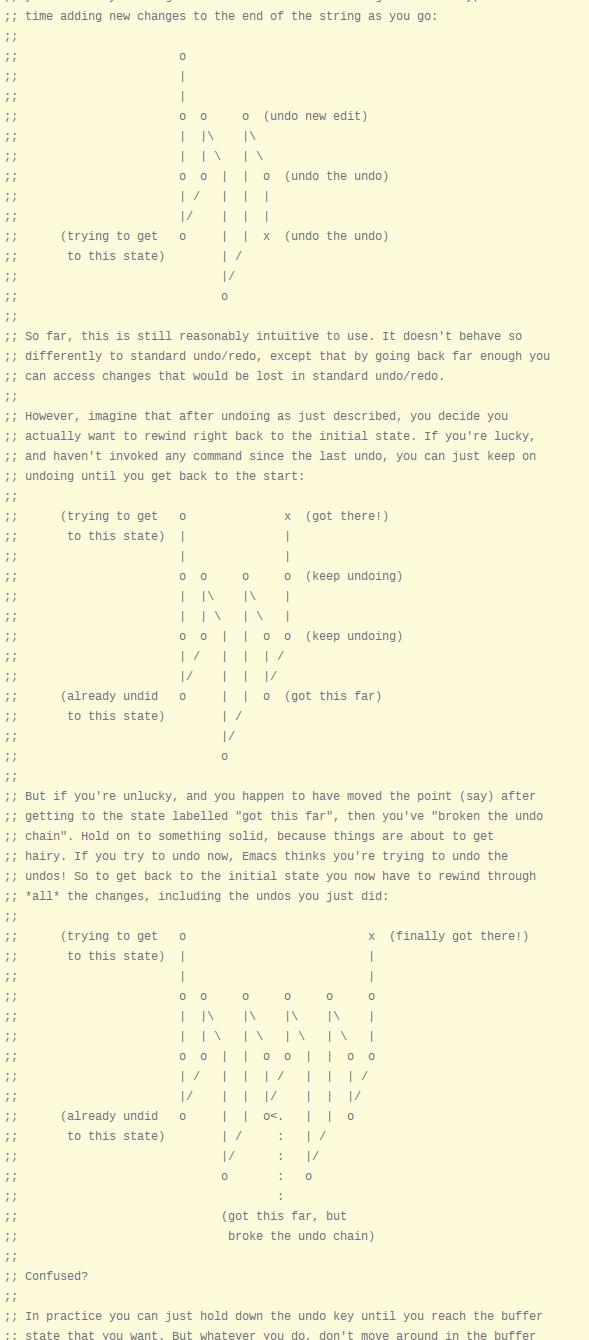

A very quick tutorial on undo systems from emacs:

几何学注释

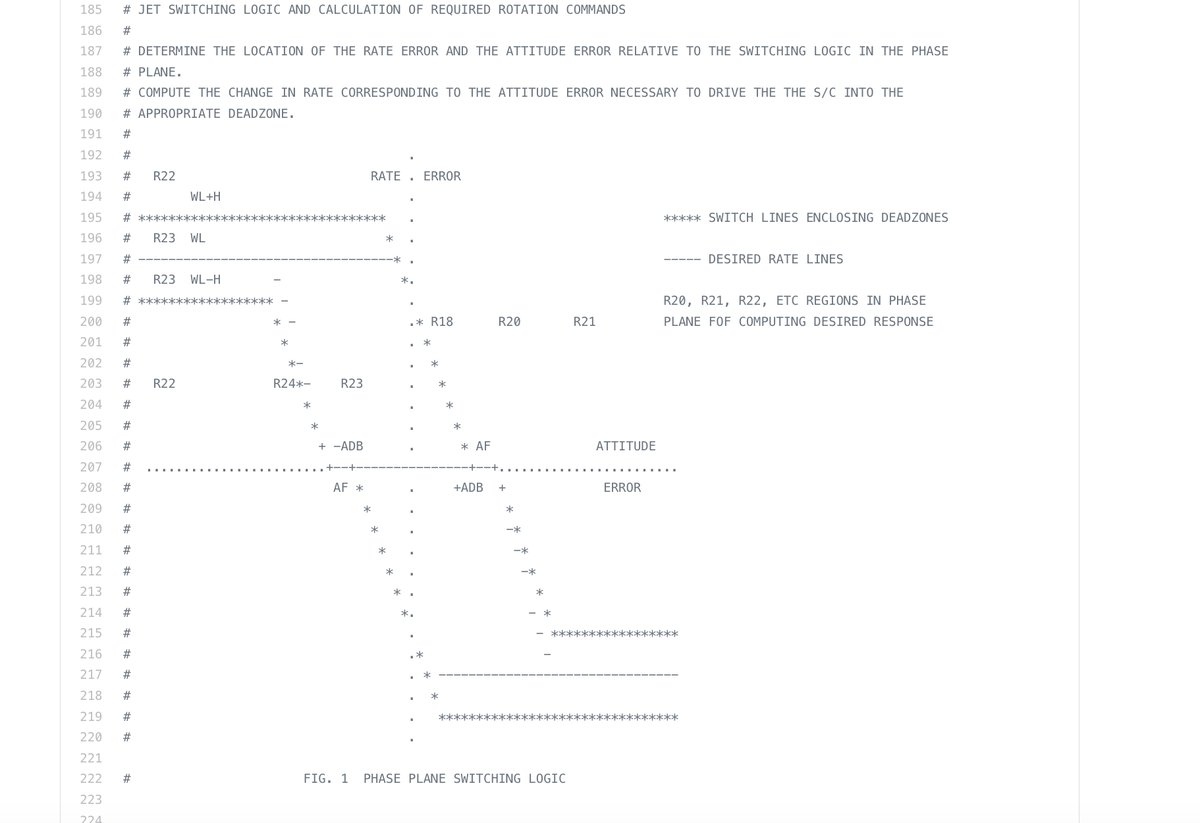

Attitude control in the Apollo Guidance Computer (!!!):

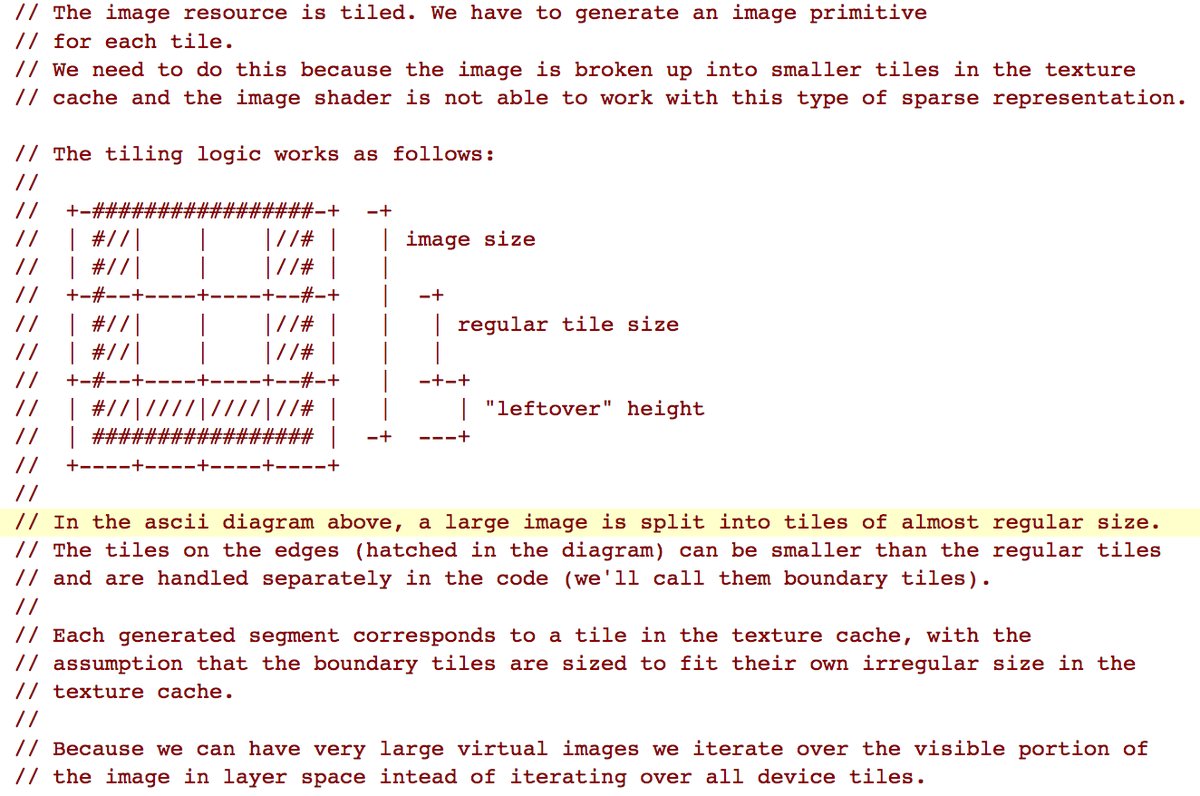

Image tiling:

Boomerang trajectories in Nethack:

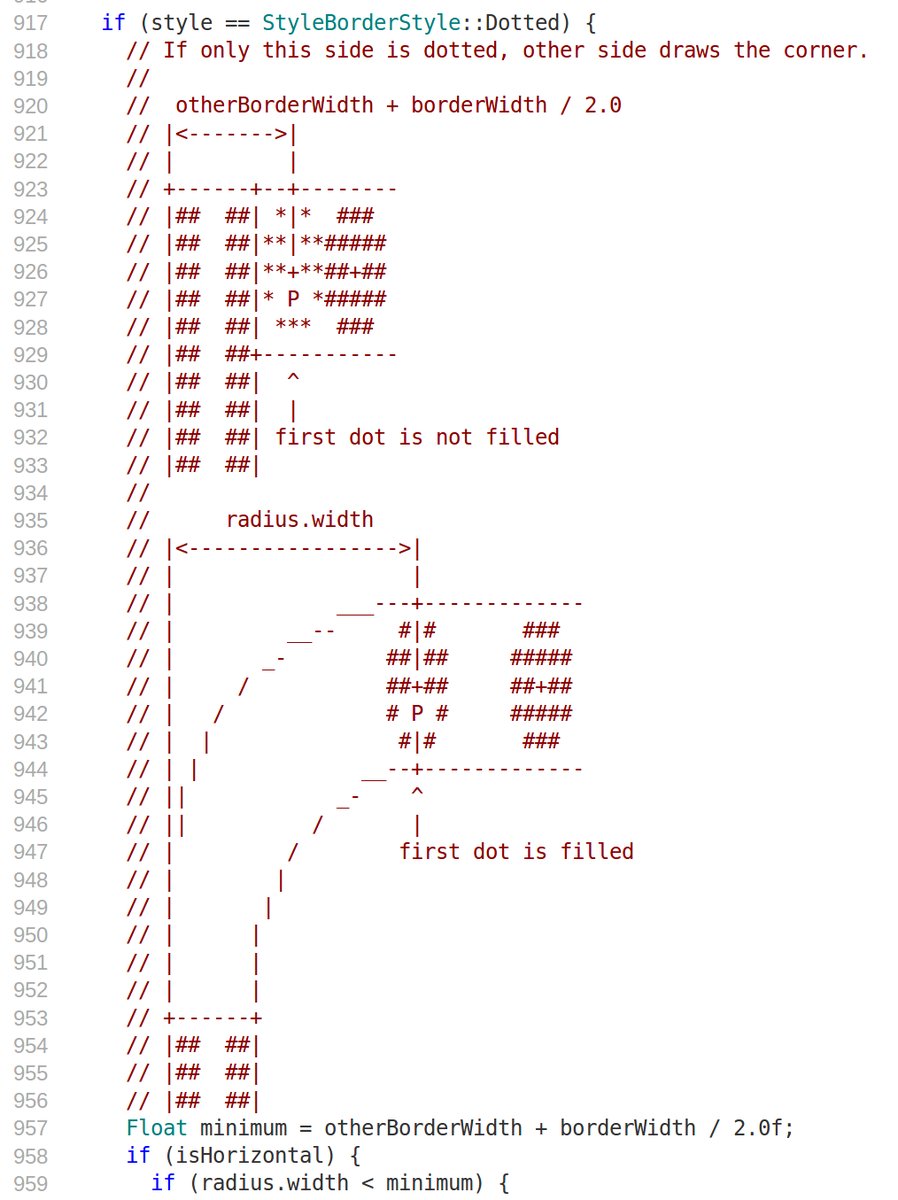

Rendering CSS borders:

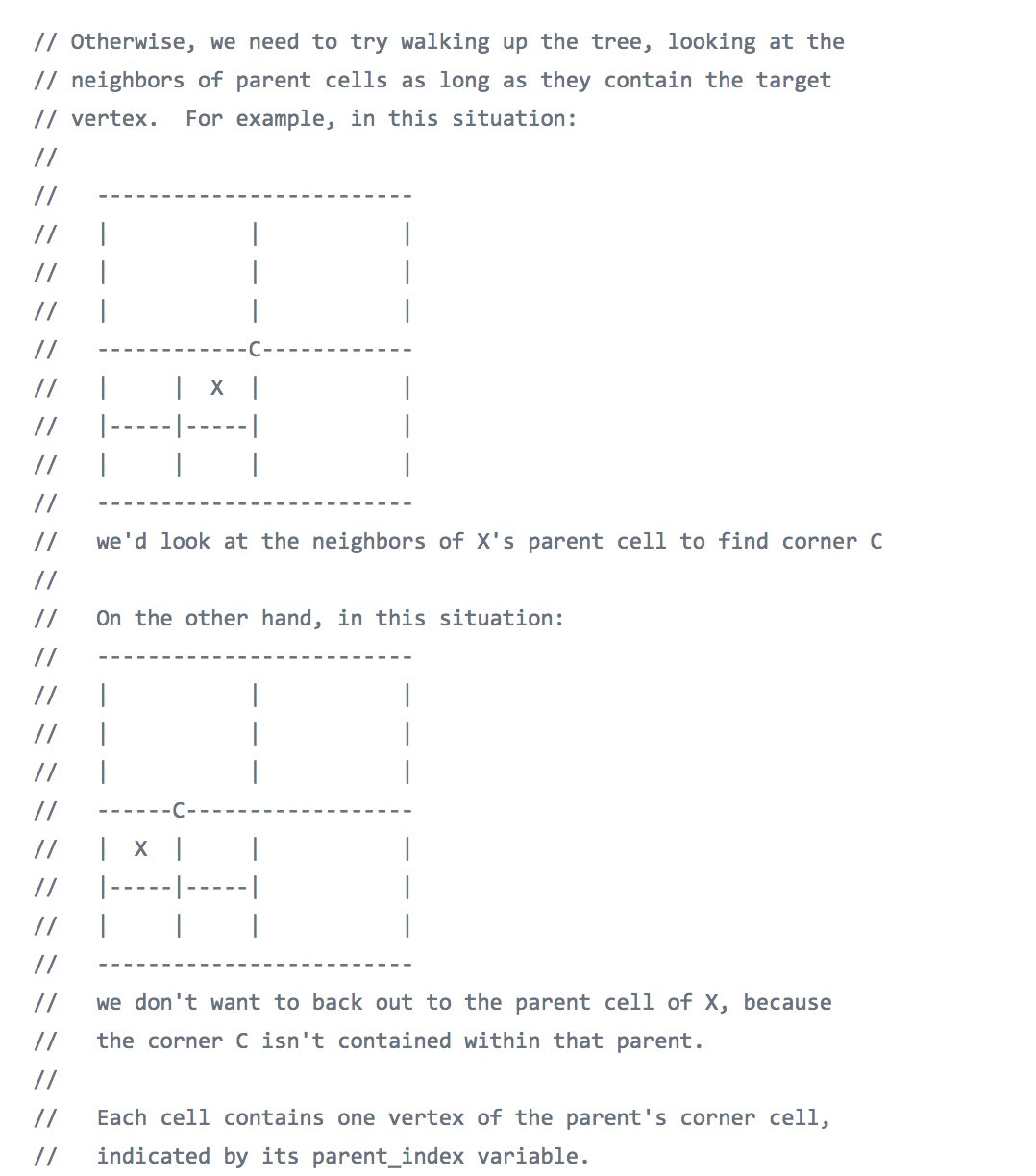

Quadtrees:

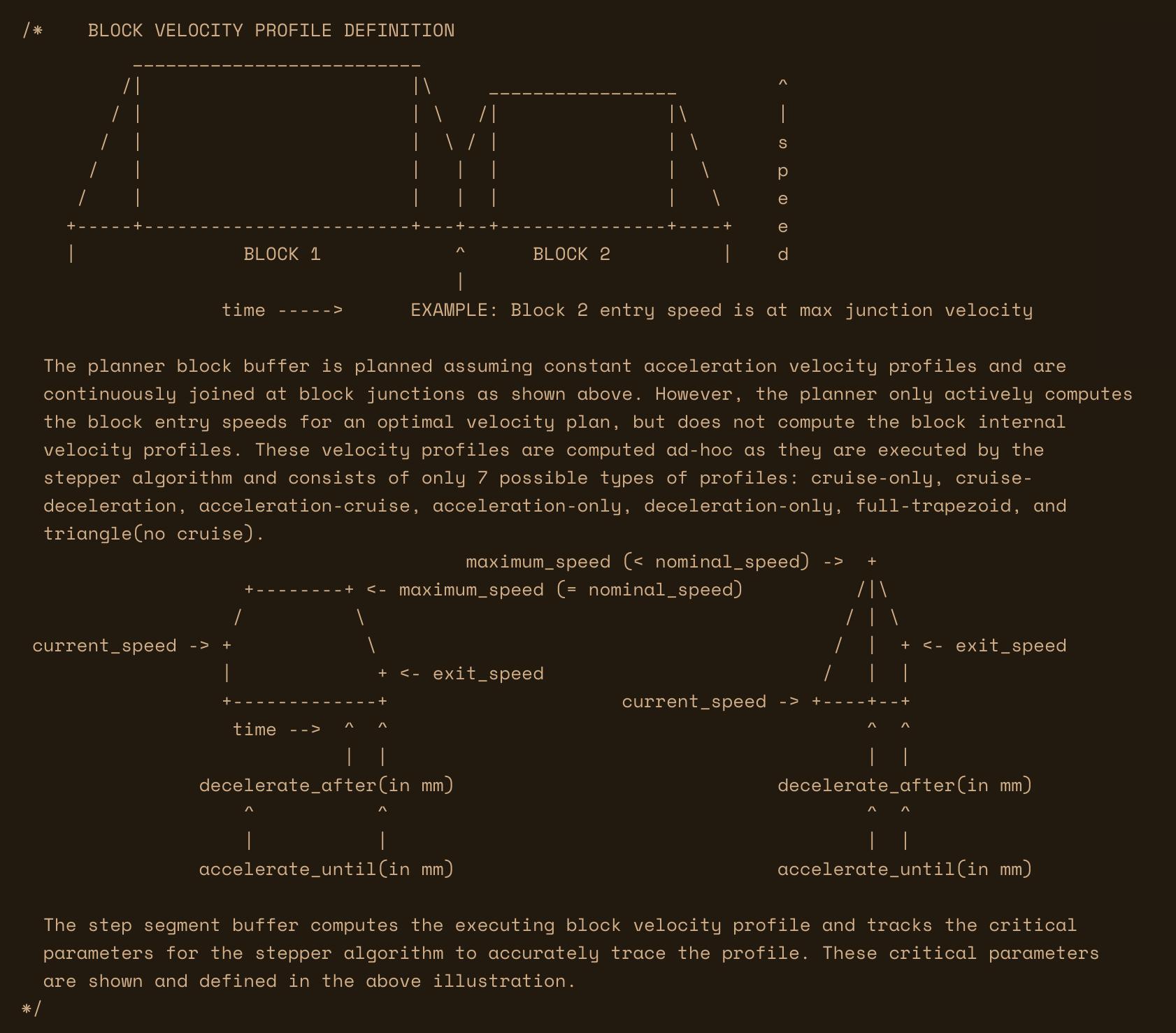

Speed control in a milling machine:

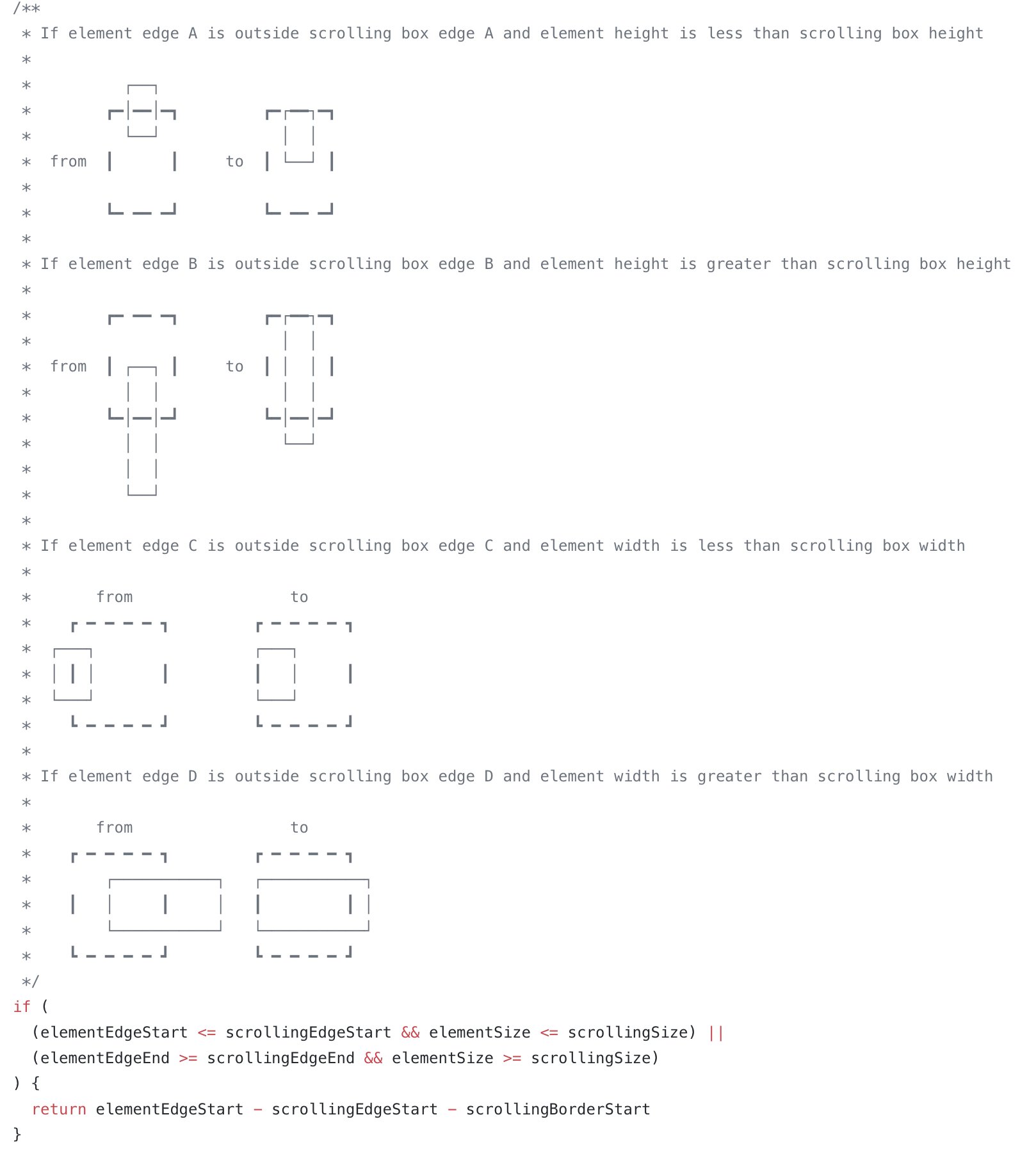

Scrolling web pages:
